The AtomStack A20 Pro V2 features a 20W diode laser with a fine 0.08 × 0.10 mm laser spot, delivering clean engraving and reliable cutting across a wide range of materials. With a 400 × 365 mm working area and speeds up to 400 mm/s, it also includes essential safety features like flame detection, tip-over alarm, and resume engraving, making it a solid and dependable choice for everyday creation.

Specifications

Product Model:	A20 Pro V2
Device Size:	‎7 x 10 x 7 inches
Engraving Size:	400 * 365mm(15.75*15.4inches)
Working Principle:	Engraving / Cutting
Engraving Materials:	Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplated and painted metal, 304 mirror stainless steel, dark glass, ceramics, cotton, slate
Cutting Materials:	Thin steel plate, cardboard, non-woven fabric, wood, black acrylic, more thin plastic sheets, sponge
Input Power:	120W
Output Power:	20W
Maximum Speed:	400 mm/s
Laser Wavelength:	455±5nm
Engraving Accuracy:	0.02mm
Spot Size:	0.08*0.10mm
Joint Structure:	Guide Rails
Connection Method:	USB、Wi-Fi 2.4G
Supported Devices & Operating Systems:	Mobile: Android, iOS
Supported Devices & Operating Systems:	Computer: Windows, mac OS
Software:	LightBurn、LaserGRBL、Atomstack PC、Atomstack APP
Driver Update:	AtomStack APP or USB drive
Supported Formats:	JPG, JPEG, SVG, PNG, BMP, PDF, G-Code, DXF
Focus Adjustment Method:	Manual focus
Tip-over Alarm:	Tipping angle>15°, buzzer prompts
Cross Positioning:	Yes
Flame detection:	Yes, it requires support from the Z2 Z-axis slider
Resume Engraving:	Yes
Quality Certification:	IEC 60825, CE, FCC, RoHS, FDA, PSE, UKCA

Budget-Friendly

Price

Collections

AtomStack A20 Pro V2 Laser Engraver

AtomStack R8 Pro Rotary Roller Set

AtomStack R8 Pro Rotary Roller Set

AtomStack Swift Laser Engraver

AtomStack Swift Laser Engraver

AtomStack Swift Mini Laser Engraver

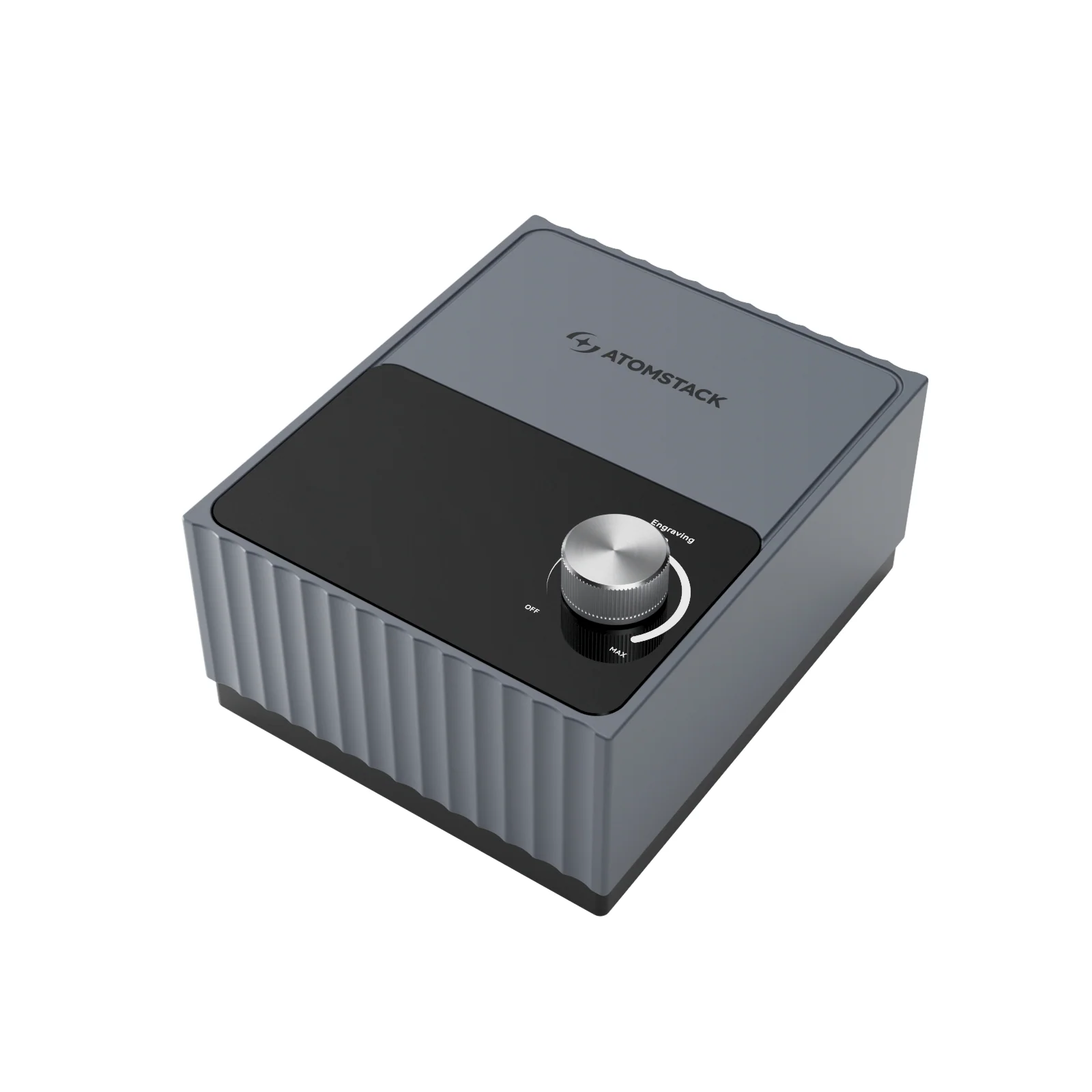

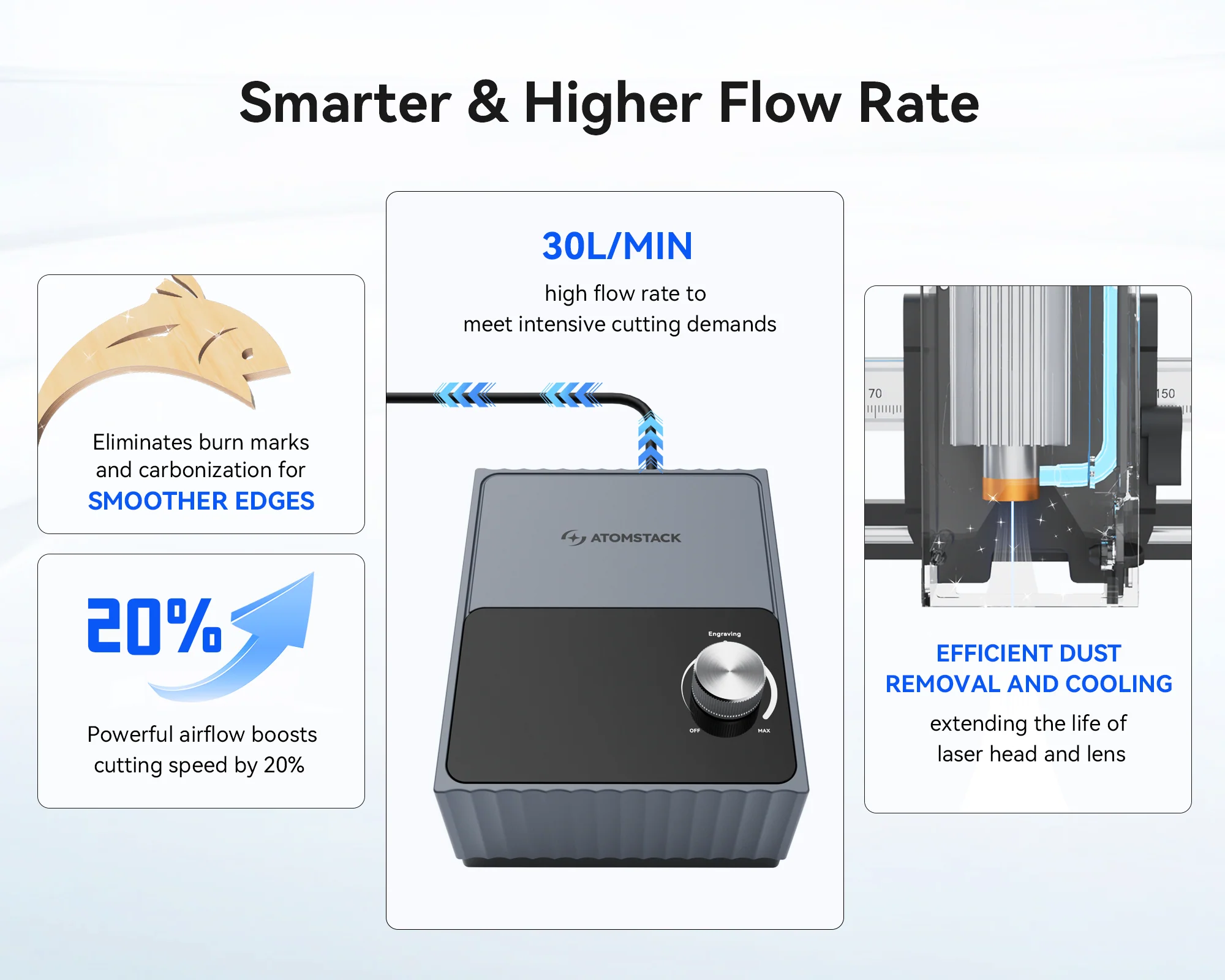

AtomStack F40 Air Assist Set for Swift Laser Engraver

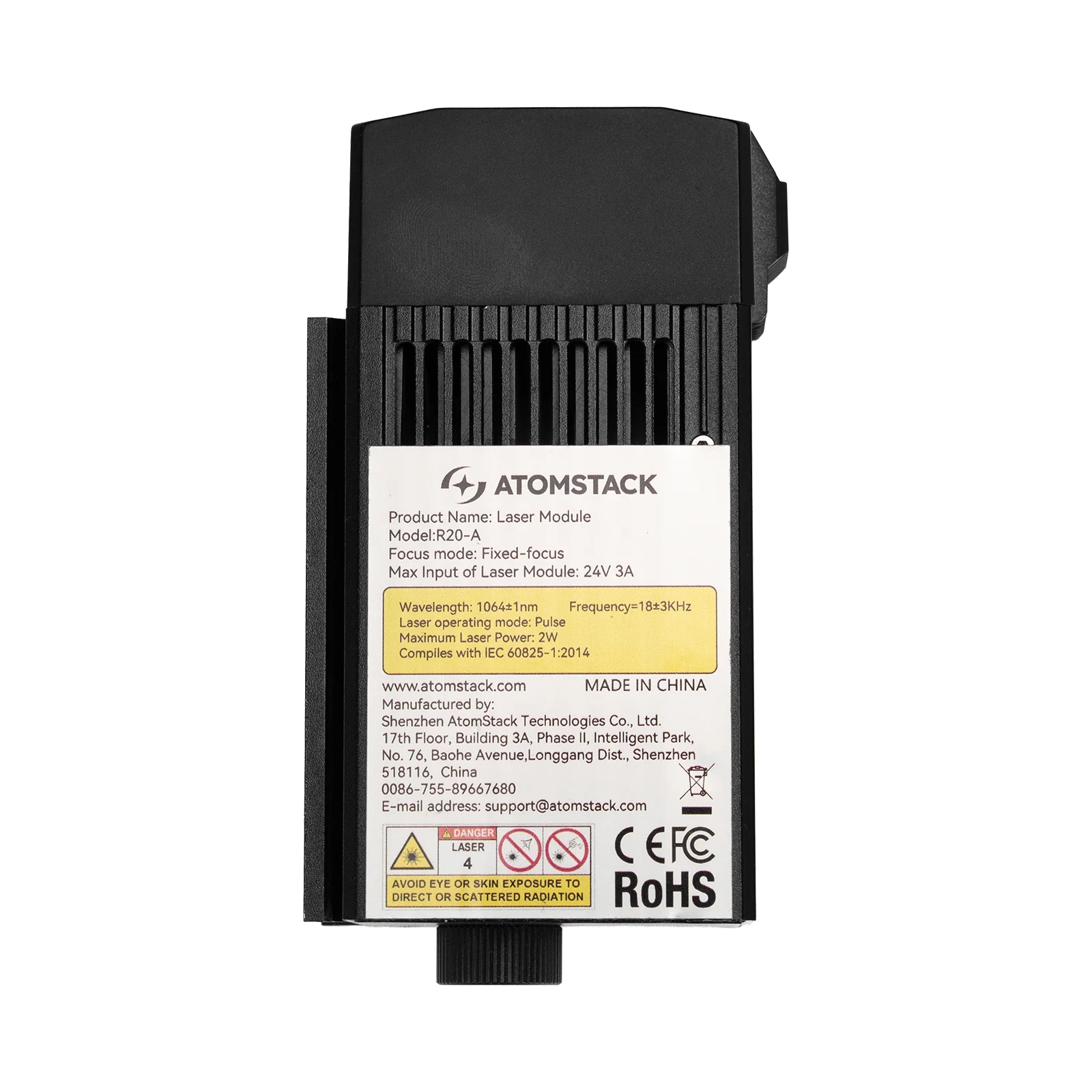

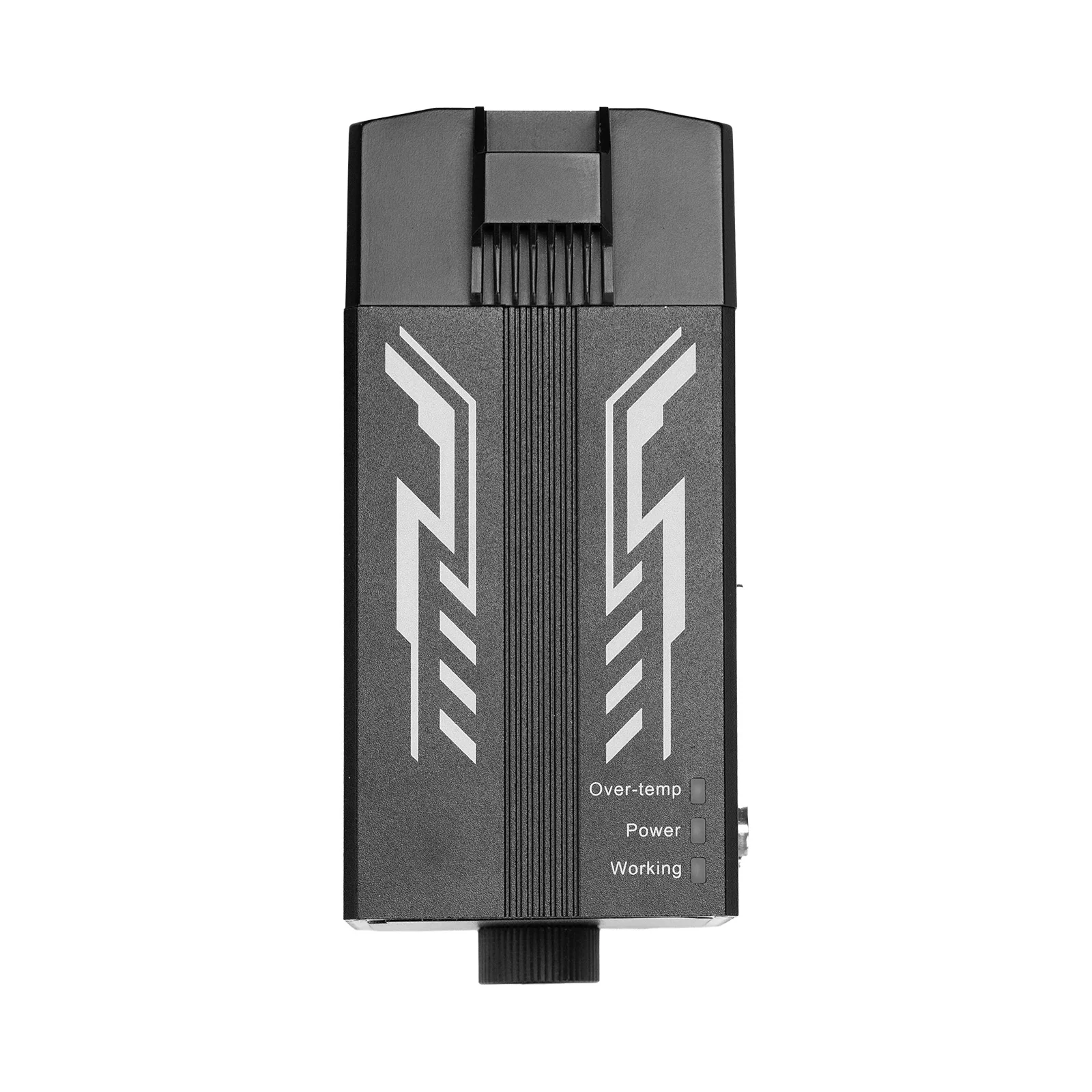

Atomstack R20-A 1.8w 1064nm Laser Module(For Swift/A20 Pro V2）
